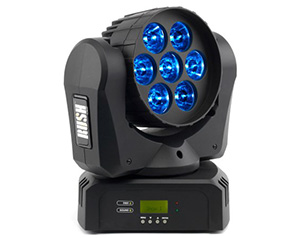

Compact yet powerful, this fast and agile LED wash light moving head features RGBW color mixing. Unique wash beam effects are possible with auto trig shows and music trig sound activation.

　　Features

　　LED wash light moving head

　　Compact yet powerful

　　RGBW color mixing

　　DMX, music trig and auto trig operation

　　17° one-tenth peak angle

　　Extremely fast and agile

　　Electronic dimming and strobe

　　3 & 5 pin XLR

　　Tech Specs

　　PhysicalLength: 258 mm (10.2 in.)Width: 156 mm (6.2 in.)Height: 305 mm (12.0 in.)Weight: 5.7 kg (12.6 lbs.)

　　Dynamic EffectsColor mixing: RGBWElectronic 'color wheel' effect: 33 LEE-referenced colors plus white, variable-speed color-wheel rotation effect and random colorElectronic 'shutter' effect: Strobe effect, pulse effects, instant open and blackoutElectronic dimming: 0 - 100%, four dimming curve optionsPan: 540°Tilt: 180°

　　Control and ProgrammingControl options: DMX, stand-aloneDMX channels: 12Stand-alone trigger options: Music trig, auto trigStand-alone options: 4 pre-programmed showsStand-alone memory: 20 scenesWhite balance control: RGB adjustmentSetting and addressing: Control panel with LCD displayProtocol: USITT DMX512/1990

　　OpticsLight source: 7 x 10 W RGBW Cree MC-E LEDsMinimum LED lifetime: 50 000 hours (to >70% luminous output)**Figure obtained under manufacturer's test conditions

　　ConstructionColor: BlackHousing: High-impact flame-retardant thermoplasticProtection rating: IP20

　　InstallationMounting points: Hex boltsLocation: Indoor use only, must be fastened to surface or structureOrientation: Any

　　ConnectionsAC power in/thru: Neutrik PowerConDMX data in/out: 3-pin and 5-pin locking XLR

　　ElectricalAC power: 100-240 V nominal, 50/60 HzTypical total power consumption: 125 WPower consumption figures are typical, not maximum. Allow for +/-10% variation.

　　Typical Power and Current110 V, 60 Hz: 1.9 A, 125 W230 V, 50 Hz: 1.0 A, 121 WMeasurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

　　ThermalCooling: Forced air (temperature-regulated, low noise)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 0° C (32° F)Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 430 BTU/hr.

　　ApprovalsEU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547US safety: UL 1573US EMC: 47 CFR Part 15 Class ACanadian safety: CSA C22.2 No. 166Canadian EMC: ICES-003 Class AAustralia/NZ: C-TICK N4241

　　Included ItemsPower cable 1.5 mBracket for rigging clamp attachment: P/N 50480564

　　Related ItemsRUSH™ Software Uploader 1: P/N 91611399

　　Ordering InformationRUSH MH 2 Wash™ in cardboard box: P/N 90280020
