Features

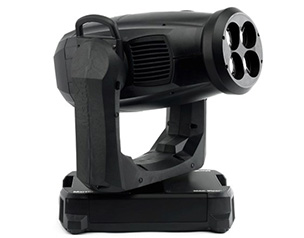

　　Front lens replacement kit - Easy installation on any MAC Viper AirFX

　　Unique and award-winning multi-beam effect

　　1, 2, 3 or 4 individually-controllable rays of light

　　Eliminates need to invest in a new fixture

　　CMY – vibrant color mixing with a superior palette of colors including true reds, rich ambers, primary green and deep blues

　　7-slot color wheel – fixed colors and correction filters for added color choice

　　Rotating gobo wheel with 5 replaceable designs

　　Static gobo wheel with 7 designs

　　Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette

　　Dimmer and shutter - combined dimmer/shutter system with intensity effects, instant blackout/open and smooth fades

　　Iris – fast and tight iris with adjustable dynamic effects

　　Diverse strobe effects

　　Tech Specs

　　PhysicalLength (Head): 566 mm (22.3 in.)Width: 473 mm (18.6 in.)Width (Base): 335 mm (13.2 in.)Height (head straight up): 732 mm (28.8 in.)Height (maximum): 749 mm (29.5 in.)Weight: 36.1 kg (79.6 in.)

　　Dynamic EffectsBeam effects: 1 - 4 individually controllable rotating beamsColor mixing: CMY, independently variable 0 - 100%Color temperature control: CTO, variable 6000 - 3200 KColor wheel: 7 interchangeable dichroic filters + open, indexing, continuous rotation, random colorRotating aerial effects: 5 interchangeable rotating aerial effect gobos, wheel and gobo indexing, continuous rotation and shakeStatic gobo wheel: Interchangeable wheel with 7 integral gobos, wheel indexing and continuous rotation, random goboWash effect: Fade in/outIris: 0 - 100%, pulse effectsMechanical dimmer/shutter: 0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackoutDimming options: Choice of four dimming curvesZoom: MotorizedPan: 540°Tilt: 268°Position correction system: Absolute position monitoring

　　Control and ProgrammingDMX channels: 20/28Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX16-bit control: Dimmer, aerial effect indexing, focus, zoom, pan and tiltDMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20Receiver: Opto-isolated RS-485Firmware update: USB memory device or USB/DMX hardware interface over DMX link

　　LampType: 1000 W short-arc dischargeColor temperature: 6000 KCRI (Color rendering index): >85Average lifetime: 750 hoursSocket: PGJX36Ballast: ElectronicApproved lamps: Osram Lok-it! 1000/PS Brilliant, Philips MSR Gold MiniFastFit 1000W

　　OpticsZoom range: 12.5-51° (1:4)Output: 20 000 lm

　　Service UtilitiesFixture identification: User-settable fixture ID number

　　ConstructionColor(s): BlackHousing: UV-resistant fiber-reinforced compositeReflector: Glass, cold lightProtection rating: IP20

　　GobosSize: E27 (Size E, max. image diameter 27 mm)Approved material: Borosilicate 3.3 or better with dichroic or heavy matted aluminum coating (metal gobos not approved)Outside diameter: 37.5 mm +0/- 0.2 mm (1.5 in. +0/- 0.01 in.)Maximum image diameter: 27 mm (1.1 in.)Maximum thickness: 1.1 mm +/- 0.1 mm (0.1 in. +/- 0.01 in.)

　　InstallationMounting points: Eight quarter-turn locking pointsOrientation: AnyMinimum distance to illuminated surfaces: 3.4 m (11.2 ft.)Minimum distance to combustible materials: 0.3 m (1.0 ft.)

　　ConnectionsAC power input: Neutrik PowerConDMX and RDM data in/out: 5-pin locking XLRUSB memory devices: USB host socket

　　ElectricalAC power: 120-240 V nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch-modeTypical half-cycle RMS inrush current: 16.2 A

　　Typical Power and Current120 V, 60 Hz: 1225 W, 10.3 A, PF 0.999208 V, 60 Hz: 1190 W, 5.8 A, PF 0.996230 V, 50 Hz: 1186 W, 5.2 A, PF 0.994240 V, 50 Hz: 1194 W, 5.0 A, PF 0.993Measurements made at nominal voltage. Allow for a deviation of +/- 10%.PF = power factor

　　ThermalCooling: Filtered forced air (temperature-regulated, low noise)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 5° C (41° F)Maximum surface temperature, steady state, at 40° C ambient: 150° C (302° F)Total heat dissipation (calculated, +/- 10% at 120 V, 60 Hz):4180 BTU/hr

　　ApprovalsEU safety: EN 60598-2-17 (EN 60598-1), EN 62471EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61547US safety: UL 1573US EMC: FCC Part 15 Class ACanadian safety: CSA E598-2-17 (CSA E60598-1)Canadian EMC: ICES-003 Class AAustralia/NZ: C-TICK N4241

　　Included ItemsLamp (installed): P/N 97010346Two Omega clamp attachment brackets with 1/4-turn fasteners: P/N 91602001Safety and installation manual

　　AccessoriesPower cable, 12 AWG, SJT, with Neutrik PowerCon NAC3FCA input connector, 3 m (9.9 ft.): P/N 11541503Neutrik PowerCon NAC3FCA power input connector, cable mount, blue: P/N 05342804Omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602001T-shaped omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602008Half-coupler (tube) clamp: P/N 91602005G-clamp (suspension with yoke vertically downwards only):P/N 91602003Quick-trigger clamp (suspension with yoke vertically downwards only): P/N 91602007Safety cable, safe working load 70 kg (154 lbs.): P/N 91604004Flightcase for 2 x MAC Viper: P/N 91510180

　　Related ItemsMartin USB Duo™ DMX Interface Box: P/N 90703010Martin RDM 5.5 Splitter™: P/N 90758150

　　Spare PartsOsram HTI 1000/PS Lok-it lamp: P/N 97010346Air filter, head, MAC Viper (sold in multiples of 12): P/N 20800270

　　Ordering InformationQuadray™ Module for MAC Viper™: P/N 91614052

　　Shipping InformationIn cardboard cartonShipping dimensions (LxWxH): 580 x 450 x 870 mm (22.9 x 17.8 x 34.3 in.)Shipping weight: 39 kg (86.0 lbs.)Quantity on pallet: 8 fixturesPallet dimensions (LxWxH): 1200 x 1000 x 1860 mm (47.3 x 39.4 x 73.3 in.)Pallet weight (incl. pallet): 334 kg (736.4 lbs.)In double flightcaseShipping dimensions (LxWxH): 1200 x 580 x 850 mm (47.3 x 22.9 x 33.5 in.)Shipping weight: 70 kg (154.4 lbs.)Quantity on pallet: 4 fixtures
