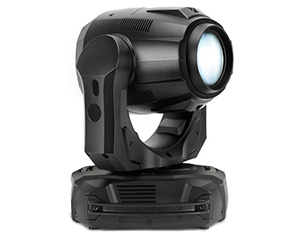

Model:MAC Axiom Hybrid

2016-12-14 06:37:41


The MAC Axiom™ Hybrid is a true all-in-one product, combining beam and spot into one compact unit that also offers diffused wash functionality. The high-precision optical system offers exceptional contrast, both in mid-air and projection as well as a surprisingly flat field, usually not seen with this short-arc lamp technology. The implementation of the MAC Viper CMY color palette gives designers the advantage of unlimited choice from subtle pastel shades to deep and saturated colors. All this comes in a small footprint and lightweight product which delivers superior performance in the best feature vs. size and weight ratio available in the market.





  • All-in-one product – packed with effects
  • Tight and narrow beam - amazing intensity
  • MAC Viper color palette - superior CMY color mixing

　　FeaturesZoom: 2-44° (continuous, no Beam/Spot modes)
16 000 lumens wide / 14 000 lumens narrow31 000 000 cd high-intensity narrow beamLow weight:
24.8 kg / 54.7 lbs.Very compact Real CMYC color mixing (MAC Viper color palette)Independent 16-slot color wheel Two gobo wheels (9 rot. & 16 stat.) with super-crisp projection and high contrast on surfaces and in mid-airAnimation effects integrated into fixed gobo wheelIndependent 3- and 8-facet prisms with unique patented dynamic ‘prism lineator’
zoom effectBeamsmoother (for flat field projection)Frost (for wash effect)Backlit LCD onboard display with auto-flipPowerCon TRUE1 mains input connector5-pin XLR DMX connectorsRDM functionality100-240 V operation, 600 W total power consumptionTech Specs Physical

　　Length (base): 399 mm (15.8 ins.)Width (across yoke): 414 mm (16.3 ins.)Height (head straight up): 616 mm (24.3 ins.)Height (maximum): 630 mm (24.9 ins.)Weight: 24.8 kg (54.7 lbs.)Dynamic Effects

　　Color mixing: CMYC (MAC Viper color palette), independently variable 0 - 100%Color wheel: 16 dichroic filters + open, indexing, continuous rotation, random colorRotating gobo wheel: 9 interchangeable rotating gobos + open, gobo indexing, continuous rotation and shakeFixed gobo wheel: 16 static gobos + open, gobo animation effectPrism 1: 3-facet rotating prism with dynamic prism zoom effect (”prism lineator”)Prism 2: 8-facet rotating prism with dynamic prism zoom effect (”prism lineator”)Frost filter for wash effectBeamsmoother for flat field projectionMechanical dimmer/shutter: 0 - 100% dimming, strobe effect 2 - 10 Hz, pulse effects, instant open and blackoutFocus: 2 m (6.6 ft.) to infinityZoom: 2° - 44° continuous (no Beam or Spot modes)Pan: 540°Tilt: 260°Position correction system: Absolute position monitoringControl and Programming

　　Control platform: DMX and RDMDMX channels: 23Configuration and addressing: Onboard control panel or via DMX16-bit control: Focus, pan and tiltOnboard display panel: Backlit LCD with auto-flipDMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20Receiver: Isolated RS-485Firmware update: Windows PC and USB-DMX hardware interfaceLamp

　　Type: 440 W short-arc dischargeColor temperature: 7000 KCRI (Color rendering index): >80Average lifetime: 1500 hoursApproved lamp: Osram Sirius HRI 440 WService Utilities

　　Fixture identification: User-settable fixture ID numberConstruction

　　Color(s): BlackHousing: Alloy, steel, UV-resistant fiber-reinforced compositeReflector: Glass, cold lightProtection rating: IP20Installation

　　Mounting points: Four quarter-turn locking pointsOrientation: AnyMinimum distance to illuminated surfaces: 15 m (49.3 ft.)Minimum distance to combustible materials: 0.2 m (0.7 ft.)Connections

　　AC power input: Neutrik PowerCon TRUE1DMX and RDM data in/out: 5-pin locking XLR

　　Electrical

　　AC power: 100-240 V nominal, 50/60 HzTypical power consumption: 600 WPower supply unit: Auto-ranging electronic switch-modeTypical Power and Current

　　110 V, 60 Hz: 5.5 A, 600 W, PF > 0.9 typical230 V, 50 Hz: 2.7 A, 600 W, PF > 0.9 typicalThermal

　　Cooling: Filtered forced air (temperature-regulated, low noise)Maximum ambient temperature (Ta max.): 40° C (104° F)Maximum surface temperature, steady state, at 40° C ambient: 90° C (194° F)Total heat dissipation (calculated, +/- 10% at 230 V, 50 Hz):2050 BTU/hrApprovals

　　EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015; EN 55032; EN 55103-1,-2; EN 61000-3-2,-3; EN 61000-4-2, -4, -5; EN 61547US safety: UL 1573US EMC: CFR 47 Part 15 Class ACanadian safety: CSA C22.2 No. 166Canadian EMC: ICES-003 Class AAustralia/NZ (pending): RCM



　　Included Items

　　Two mounting brackets with quarter-turn fastenersSIP foam flight case inlayAccessories

　　Flightcase for 2 x MAC Axiom Hybrid: P/N 91515037Power cablesPower input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786Power connectorsCable connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789Installation hardwareHalf-coupler clamp: P/N 91602005G-clamp (suspension with yoke vertically downwards only):P/N 91602003Quick-trigger clamp (suspension with yoke vertically downwards only): P/N 91602007Related Items

　　Martin M-PC Pro-64 / LJ-4 Controller kit: P/N 90737060Ordering Information

　　MAC Axiom™ Hybrid in cardboard box: P/N 90490000
