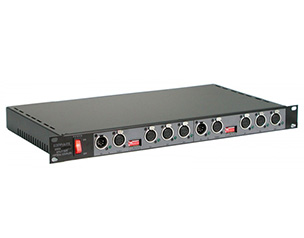

Housed in a 1U / 19” rack mounting box, the DMX-512 splitter is an ultimate buffered distribution unit to protect any input / output data lines.
Each input / output has a separate Optical isolated driver to ensure
a high level of protection.
LED indicators are provided for each input and outputs.

• No internal wiring, connectors onboard
• Connectors on Front or on Back (option)
• Daisy chain of input data
• Termination switch for data input
• Available in 1in / 3out, 1in / 6 out or dual 1in / 3out independent  at the same box.
