Model:Dlite 72

2016-12-14 01:28:48

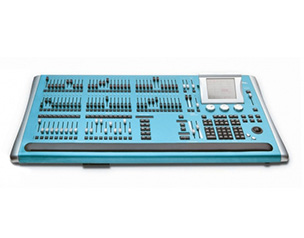

Dlite 72



Incorporating manual and programmable lighting console operation.
Designed for a wide variety of lighting applications, Dlite 72 has all the advantages of compact size, robust programming and playback operation, and affordability

HIGHLIGHTS

  • 4 DMX512  universes: 2 internal; 2 via Ethernet
  • 1 DMX512 input port
  • Ethernet, SMPTE, MIDI, AUDIO and DMX input
  • 1 built-in touch screen and optional external monitor
  • Internal flash disk
  • 20 playbacks with flash keys for scenes chases and Qlists
  • 72 faders with flash keys and 3 mode operation
  • 1 crossfader for QList playback
  • Effects editor with pre-programmed, editable effect
  • Automatic groups
  • Automatic libraries
  • 3 USB 2.0 ports for saving & loading shows and device files.

FEATURES

  • 3 fader operation modes: Wide mode for direct channel control,
  • 2 Preset mode for manual 2 preset operation, Context mode for
    object selection and programming
  • 3 banked encoder wheels for parameter control
  • Trackball for pan and tilt control
  • Live and blind editors
  • Focus, beam, color libraries
  • 36 fixture types can be used simultaneously
  • 240 scenes
  • 72 chases with up to 48 steps each
  • 72 QLists with up to 999.9 cues each
  • 96 selection groups including automatic groups
  • 72 effects including pre-programmed effects
  • Ethernet distribution of DMX-512 output and visualizers
