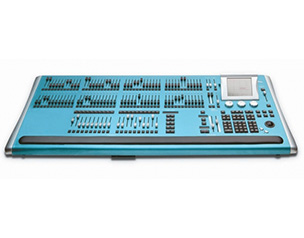

Dlite 96 seamlessly integrates manual and programmable lighting console operation.
Designed for a wide variety of lighting applications, Dlite 96 has all the advantages of compact size, robust programming and playback operation, plus affordability.
HIGHLIGHTS
- 4 DMX512 universes: 2 internal; 2 via Ethernet
- 1 DMX512 input port
- Ethernet, SMPTE, MIDI, AUDIO and DMX input
- 1 built-in touch screen and optional external monitor
- Internal flash disk
- 20 playbacks with flash keys for scenes, chases and Qlists
- 96 faders with flash keys and operation in 3 modes
- 1 crossfader for QList playback
- Effects editor with pre-programmed, editable effects
- Automatic groups
- Automatic libraries
- 3 USB 2.0 ports for saving & loading shows and device files.
FEATURES
- 3 fader operation modes: Wide mode for direct channel control, 2 Preset mode for manual 2 preset operation, Context mode for object selection and programming
- 3 banked encoder wheels for parameter control
- Trackball for pan and tilt control
- Live and blind editors
- Focus, beam, color libraries
- 36 fixture types can be used simultaneously
- 240 scenes
- 72 chases with up to 48 steps each
- 72 QLists with up to 999.9 cues each
- 96 selection groups including automatic groups
- 72 effects including pre-programmed effects
- Ethernet distribution of DMX-512 output and visualizers
