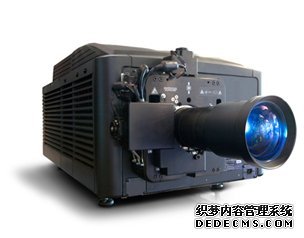

Model：Roadie 4K45 4K DLP projector

2016-12-29 05:34:59




4K resolution at 60Hz, with 45,000 lumens projection built for the road? You’re looking at it.

SPECS


Brightness
  • 43,000 ANSI lumens (typical)
  • 45,000 Centre lumens
Contrast
  • 2000:1
Display
  • 3-chip 1.38" DMD
Resolution
  • Native 4K (4096 x 2160)
Illumination
  • Xenon bubble
Lamp Life
  • 7.0kW CDXL-70 - 400 hours
  • 6.0kW CDXL-60 - 750 hours
  • 4.5kW CDXL-30 - 900 hours
  • 3.0kW CDXL-20 - 2,500 hours
  • 2.0kW CDXL-20 - 3,500 hours
Inputs
  • 2 x Dual 3G HD-SDI input card
  • 2 x Twin display port input card
Pixel clock
  • 1.2Gpx/s - TrueLife Electronics
Networking
  • RS232 in
  • Ethernet (10/100) RJ45 with ChristieNET connectivity
  • Detachable control panel
Standard accessories
  • Ballast and cables
  • User manual
  • Wired TPC
Optional accessories
  • Dual link DVI input card
  • Twin HDMI input card
  • Rigging and stacking frame
Lens mount
  • Tool-free lens insertion system
  • Boresight adjustable
  • Motorised horizontal and vertical lens offset
  • Motorised zoom and focus adjustment
Lens options
    Fixed
  • 0.72:1 (no offset)
  • 1.0:1 (Offset: Vertical: ± 29% Horizontal: 9%)
    Zoom
  • 1.13-1.31:1 (Offset: Vertical: ± 56% Horizontal: 19%)
  • 1.31-1.63:1 (Offset: Vertical: ± 13% Horizontal: 4%)
  • 1.63-2.17:1 (Offset: Vertical: ± 13% Horizontal: 4%)
  • 1.98-2.71:1 (Offset: Vertical: ± 13% Horizontal: 4%)
  • 2.71-3.89:1 (Offset: Vertical: ± 13% Horizontal: 4%)
  • 3.89-5.43:1 (Offset: Vertical: ± 13% Horizontal: 4%)
  • 5.43:1 -7.69:1 (Offset: Vertical: ± 56% Horizontal: 19%)
Power
  • Current: 7A @ 200V
    Ballast
  • detached, 8kW low-ripple, switch-mode lamp ballast
  • Operating voltage: 3-phase 200-230V AC @ 50/60Hz
  • Operating current: 38A per phase max
  • Operating voltage: 3-phase 380-415V AC @ 50/60Hz
  • Operating current: 26A per phase max
Dimensions
(L x W x H)
    Head
  • Physical: 52.3 x 25.5 x 20.53" (1329 x 647 x 522mm)
  • Shipping: 55.98 x 35.98 x 31.50" (1422 x 914 x 800mm)
    Ballast
  • Physical: 21.3 x 17.5 x 20.09" (542 x 445 x 532mm)
Weight
    Head
  • Physical: 129kg (284.4lbs) (no lens, no linecord)
  • Shipping: 160kg (352.74lbs)
    Ballast
  • Physical: 57kg (126lbs)
  • Shipping: 71kg (156.5lbs)
Operating environment
  • Temperature: 10 - 35°C (50 - 95°F)
  • Humidity: 0 to 90% non-condensing
Regulatory
    This product conforms to these regulations related to product safety, environmental requirements and electromagnetic compatibility (EMC) Directives:
  • (EC) 2011/65/EU (RoHS)
  • 2012/19/EU (WEEE)
    Regulations:
  • (EC) No. 1907/2006 (REACH)
  • CAN/CSA C22.2 No. 60950-1
  • UL 60950-1
  • IEC 60950-1
  • EN 60950-1
  • FCC, Part 15, Subpart B, Class A
  • EN55022/CISPR22 Class A
  • EN55024/CISPR24
Limited warranty
  • 3 years parts and labor (including light engine)
  • Contact an authorised Christie representative for full details of our limited warranty
Brightness
  • 43,000 ANSI lumens (typical)
  • 45,000 Centre lumens
Contrast
  • 2000:1
Display
  • 3-chip 1.38" DMD
Resolution
  • Native 4K (4096 x 2160)
Illumination
  • Xenon bubble
Lamp Life
  • 7.0kW CDXL-70 - 400 hours
  • 6.0kW CDXL-60 - 750 hours
  • 4.5kW CDXL-30 - 900 hours
  • 3.0kW CDXL-20 - 2,500 hours
  • 2.0kW CDXL-20 - 3,500 hours
Inputs
  • 2 x Dual 3G HD-SDI input card
  • 2 x Twin display port input card
Pixel clock
  • 1.2Gpx/s - TrueLife Electronics
Networking
  • RS232 in
  • Ethernet (10/100) RJ45 with ChristieNET connectivity
  • Detachable control panel
Standard accessories
  • Ballast and cables
  • User manual
  • Wired TPC
Optional accessories
  • Dual link DVI input card
  • Twin HDMI input card
  • Rigging and stacking frame
Lens mount
  • Tool-free lens insertion system
  • Boresight adjustable
  • Motorised horizontal and vertical lens offset
  • Motorised zoom and focus adjustment
Lens options
    Fixed
  • 0.72:1 (no offset)
  • 1.0:1 (Offset: Vertical: ± 29% Horizontal: 9%)
    Zoom
  • 1.13-1.31:1 (Offset: Vertical: ± 56% Horizontal: 19%)
  • 1.31-1.63:1 (Offset: Vertical: ± 13% Horizontal: 4%)
  • 1.63-2.17:1 (Offset: Vertical: ± 13% Horizontal: 4%)
  • 1.98-2.71:1 (Offset: Vertical: ± 13% Horizontal: 4%)
  • 2.71-3.89:1 (Offset: Vertical: ± 13% Horizontal: 4%)
  • 3.89-5.43:1 (Offset: Vertical: ± 13% Horizontal: 4%)
  • 5.43:1 -7.69:1 (Offset: Vertical: ± 56% Horizontal: 19%)
Power
  • Current: 7A @ 200V
    Ballast
  • detached, 8kW low-ripple, switch-mode lamp ballast
  • Operating voltage: 3-phase 200-230V AC @ 50/60Hz
  • Operating current: 38A per phase max
  • Operating voltage: 3-phase 380-415V AC @ 50/60Hz
  • Operating current: 26A per phase max
Dimensions
(L x W x H)
    Head
  • Physical: 52.3 x 25.5 x 20.53" (1329 x 647 x 522mm)
  • Shipping: 55.98 x 35.98 x 31.50" (1422 x 914 x 800mm)
    Ballast
  • Physical: 21.3 x 17.5 x 20.09" (542 x 445 x 532mm)
Weight
    Head
  • Physical: 129kg (284.4lbs) (no lens, no linecord)
  • Shipping: 160kg (352.74lbs)
    Ballast
  • Physical: 57kg (126lbs)
  • Shipping: 71kg (156.5lbs)
Operating environment
  • Temperature: 10 - 35°C (50 - 95°F)
  • Humidity: 0 to 90% non-condensing
Regulatory
    This product conforms to these regulations related to product safety, environmental requirements and electromagnetic compatibility (EMC) Directives:
  • (EC) 2011/65/EU (RoHS)
  • 2012/19/EU (WEEE)
    Regulations:
  • (EC) No. 1907/2006 (REACH)
  • CAN/CSA C22.2 No. 60950-1
  • UL 60950-1
  • IEC 60950-1
  • EN 60950-1
  • FCC, Part 15, Subpart B, Class A
  • EN55022/CISPR22 Class A
  • EN55024/CISPR24
Limited warranty
  • 3 years parts and labor (including light engine)
  • Contact an authorised Christie representative for full details of our limited warranty
