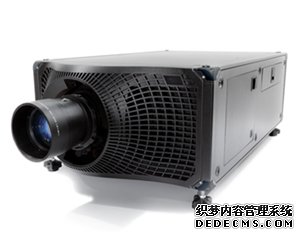

Model：Boxer 4K30

2016-12-29 05:36:59



SPECS

Brightness
  • 29,000 ANSI (typical)
  • 30,000 centre
Contrast
  • 2000:1
Display
  • 3DLP 1.38" DMD
Resolution
  • 4K (4096 x 2160)
Illumination
  • 6x 450W NSH
Lamp Life
  • 1500 hours to 70% initial brightness
Inputs
  • 2 x Dual 3G HD-SDI input card
  • 2 x Twin DisplayPort input card
  • HDBaseT
Pixel clock
  • 1.2Gpx/s - TruLife Electronics
Networking
  • Keypad
  • RS232 in
  • Ethernet (10/100) RJ45
Optional accessories
  • Dual link DVI input card
  • Twin HDMI input card
  • Dual 3G HD-SDI input card
  • Twin DisplayPort input card?
  • Rigging and stacking frame
Lens mount
  • Tool-free lens insertion system
  • Boresight adjustable
  • Motorised horizontal and vertical lens offset
  • Motorised zoom and focus adjustment
Lens options
    Fixed
  • 0.72:1 (no offset)
  • 0.9:1 (Offset: V: ±45%, H: 18%)
    Zoom
  • 1.13-1.31:1 (Offset: V: ±60%, H: 23%)
  • 1.31-1.63:1 (Offset: V: ±82%, H: 28%)
  • 1.63-2.17:1 (Offset: V: ±86%, H: 32%)
  • 1.98-2.71:1 (Offset: V: ±13%, H: 4%)
  • 2.71-3.89:1 (Offset: V: ±43%, H: 14%)
  • 3.89-5.43:1 (Offset: V: ±86%, H: 22%)
  • 5.43:1 -7.69:1 (Offset: V: ±56%, H: 19%)
Power
  • 200-240V
  • 19A
Dimensions
(L x W x H)
  • 37.75 x 23.5 x 12"
  • 959 x 597 x 305mm
Weight
  • ~150lbs (~68kg)
Operating environment
  • Temperature: 5 to 40°C (41 to 104°F)
  • Humidity: 10 to 80%, non-condensing
Limited warranty
  • 3 years
